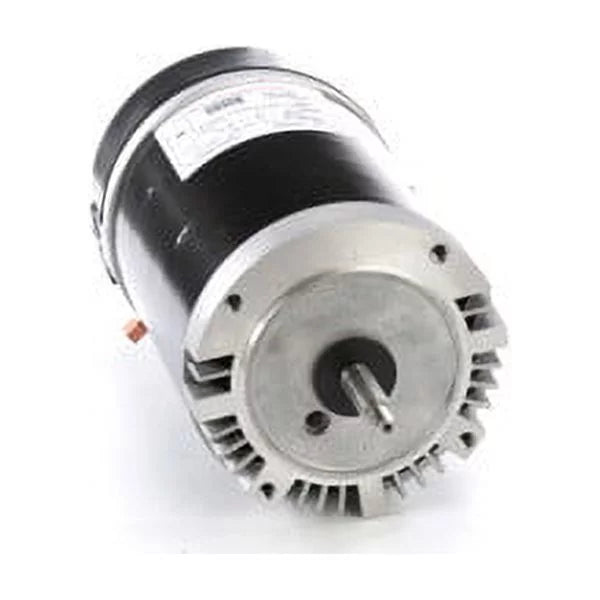

3 3450 RPM 56J 208-230V Northstar Swimming Pool Pump Motor Century # SN1302

US Electric Equivalent ESN1302. 1 Year Manufacture Warranty. Wiring diagram on motor name plate. Bolt holes are 5 7/8" on center measured across the shaft. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Stainless steel shaft, sealed ball bearings, switchless, E-Coated main frame for superior corrosion resistance. Amps are stated based on the full service factor. This is an Energy Efficient, full rated motor with a High Service factor. It can also be used on any other pump requiring a 56J frame motor. Automatic Overload Protection - Service Factor 1.60 Non-Reversible - CCW Rotation facing the shaft C-Face Mount, Round Body-no base 56-J Frame; 5/8" diameter threaded stainless steel shaft This is the motor Hayward uses on the Northstar inground pool pump. 3 3450 RPM 56J, 19.0 amps, 208-230V 60hz
